Smart Consumer Electronics – Electronic Silicone Application Solutions

作者 Gubang | Jul 24, 2026

Scope of Application: Smartphones, tablets, wearables, AR/VR, drones, smart speakers, IoT terminals, TWS earbuds, and smart home terminals

1. Smart Electronics Industry Overview

1.1 Smart Electronics Industry Development Trends

The global smart electronics market continues its rapid growth. In 2026, worldwide smartphone shipments exceeded 1.4 billion units, wearables surpassed 500 million units, TWS earbuds exceeded 400 million pairs, and AR/VR devices are accelerating penetration into the consumer market. Smart terminal products keep evolving toward thinner/lighter designs, higher performance, water and dust resistance, and multi-function integration, placing higher demands on key materials such as thermal interface, protection, and sealing.

Electronic silicone materials are used throughout smart electronics—from chip cooling, camera-module protection, and FPC reinforcement to structural sealing, water/dust resistance, and acoustic sealing. With their low modulus, aging resistance, biocompatibility, and processing flexibility, silicones have become indispensable functional materials in consumer electronics.

1.2 Core Value of Electronic Silicone in Smart Electronics

Value Dimension

Specific Application

Result

Chip Cooling

CPU/GPU/PMIC heat conduction

Reduce temperature rise by 15–30℃; sustain full-frame operation without throttling

Camera Protection

Camera-module sealing and fixation

Dust-proof, anti-shake; 1,000,000 autofocus cycles

Waterproof Sealing

Full device / IP68 waterproofing

Waterproof depth 1.5 m / 30 min; Cpk ≥ 1.67

FPC Reinforcement

Foldable-screen / connector reinforcement

200,000 bends without fracture

Acoustic Sealing

Speaker / microphone sealing

Meets airtightness; low-frequency improved by 3 dB

Cushioning Protection

Drop cushioning, sensor filling

1.5 m, 26-face drop pass rate >95%

1.3 Smart Electronics Classification and Silicone Requirement Mapping

Smartphone: chip cooling (TC series) -> camera sealing (SE series) -> full-device waterproofing (SS series) -> FPC/connector reinforcement (IC series). Wearable (watch/band): main-board cooling (TC series) -> heart-rate sensor optical sealing -> full-device waterproofing (SS series) -> strap/button. TWS earbuds: chip cooling (TC series) -> speaker acoustic sealing (AC series) -> charging-case sealing (SS series) -> button. AR/VR device: AP/display-driver cooling (TC series) -> optical-module sealing -> eye-tracking protection -> housing sealing. Drone: VESC/motor cooling (TC series) -> flight-control board conformal coating (PC series) -> camera gimbal sealing (SS series). Smart speaker/home: amplifier cooling (TC series) -> pickup-microphone sealing (AC series) -> full-device sealing (SS series). IoT module: RF PA cooling (TC series) -> antenna-module potting -> full-device waterproofing

2. Product Portfolio Overview

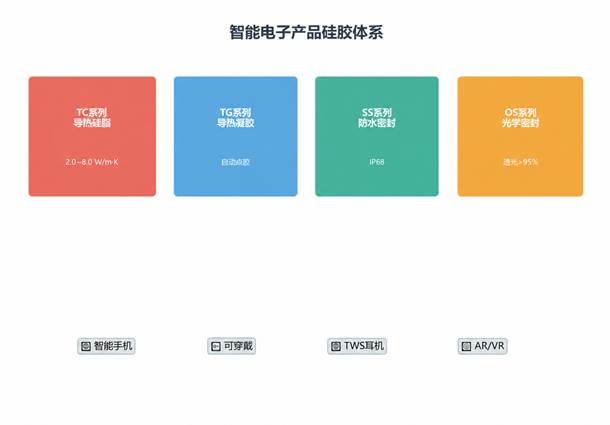

Figure 2-1 Smart Electronics Silicone System Architecture Diagram

2.1 Core Product Series

Product Series

Product Name

Typical Model

Key Features

Ultra-High-Thermal-Conductivity Grease

Chip-level cooling

MT-3203/3207

Thermal conductivity 3.0–8.0 W/m·K; ultra-thin coating 30 μm

Thermal Gel

Automated dispensing cooling

MT-4203

Thermal conductivity 3.0 W/m·K; automated dispensing; pre-cured

Waterproof Sealant

Full-device IP68 sealing

MT-705A

IP68; low VOC; mold class 0; medical grade optional

Optical Sealant

Camera / sensor sealing

MT-705B

Optical clarity >95%; low shrinkage; UV resistant

Acoustic Sealant

Speaker / microphone sealing

Acoustic airtight; adjustable damping; low volatility

FPC Reinforcement Adhesive

Foldable-screen reinforcement

High flexibility, 200,000 bends; low modulus

Optical Bonding Liquid Adhesive

Screen OCA bonding

Full lamination; optically clear; low yellowing

2.2 Product Technical Advantages

8.0 W/m·K ultra-high-conductivity grease: developed for flagship phone AP/GPU; 30 μm ultra-thin film coating

IP68 waterproof sealant: low VOC, compliant with RoHS/REACH; medical grade available

Optically clear sealing: light transmittance >95%, low shrinkage <0.5%; dedicated to camera modules

FPC reinforcement 200,000 bends: matches foldable/flexible-screen bend life

Automated-dispensing gel: pre-cured / thixotropic design; suited to high-speed dispensing lines

3. Smartphone Application Solutions

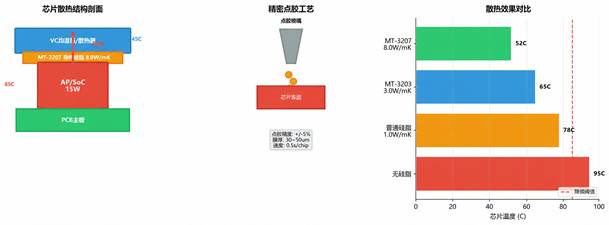

Figure 3-1 Thermal Grease Application Diagram: cooling-structure cross-section, precision dispensing process, cooling-effect comparison

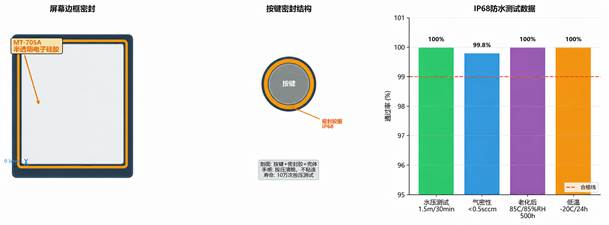

Figure 3-2 Waterproof Sealant Application Diagram: screen-bezel sealing, button-sealing structure, IP68 waterproofing test data

3.1 Chip Cooling Solution

Application location: between AP/SoC, GPU, PMIC, charging IC and the shield can / vapor chamber. Recommended products: MT-3207 (8.0 W/m·K) + MT-4203 (gel filling)

Parameter

MT-3207

MT-4203

Thermal Conductivity

8.5 W/m*K

3.0 W/m*K

Coating Thickness

30~50um

100~500um

Application Method

Precision printing / dispensing

Automated dispensing / micro-needle

Application Scenario

CPU/GPU core

Multi-chip / large-tolerance gap

Smartphone cooling design trend: vapor chamber (VC) + grease combination, where grease serves as the interface between VC and shield can; chip gap tolerance ±0.1 mm, MT-3207 ultra-thin coating reduces thermal resistance; thermal gel fills the large gap (100–300 μm) between VC and mid-frame; total heat source ranges from 5 W (mid-range) to 15 W+ (gaming flagship)

3.2 Camera Module Sealing Solution

Application location: between camera-module bracket and mid-frame, and inside the lens module. Recommended product: MT-705B optical sealant

Location

Function

MT-705B

Lens-module base sealing

Dust-proof and anti-shake

Low shrinkage <0.5%; no axis deviation

OIS anti-shake bonding

VCM spring fixation

Impact resistance 10000 G; no displacement

Sensor cover-plate bonding

IR filter bonding

Optical clarity >95%; bubble-free

Camera decorative-ring fixation

Appearance sealing

UV resistant 2000 h; no yellowing

3.3 Full-Device IP68 Waterproofing Solution

Application location: mid-frame to screen joint, charging port, SIM tray, buttons, earpiece mesh. Recommended product: MT-705A waterproof sealant

Waterproof Location

Process

Requirement

Screen-bezel dispensing

Narrow-bezel 0.5 mm precision dispensing

Dispensing width 0.3 mm ±0.05

Button sealing

Micro-needle dispensing / FIPG

No sticking; good tactile feel

Charging-port sealing

O-ring + dispensing assistance

Still IP68 after 10,000 insert/remove cycles

SIM-tray sealing

Liquid silicone (LSR) molding

Waterproof 1.5 m / 30 min

Earpiece / Speaker

Venting membrane + PIPG sealing

Airtightness + sound transmission

Full-device waterproofing test standard: IP67/IP68 (1.5 m depth, 30 min); airtightness test: leakage rate <0.5 sccm @30 kPa; post-aging protection: still passes after 85℃ / 85% RH for 500 h

3.4 FPC and Connector Reinforcement

Figure 3-3 FPC Reinforcement Adhesive Application Diagram: foldable-screen FPC reinforcement, bend-fatigue test, bend-life comparison (image not provided in source package)

4. Wearable Device Application Solutions

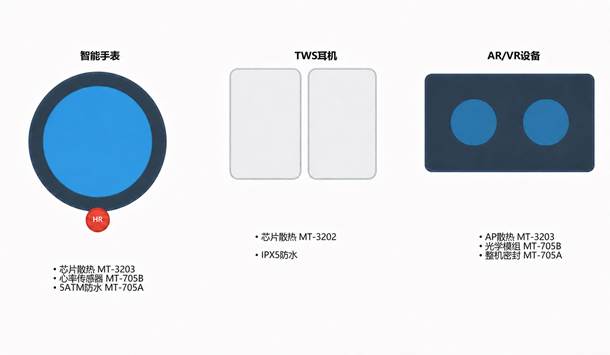

Figure 4-1 Wearable Device Silicone Application Diagram

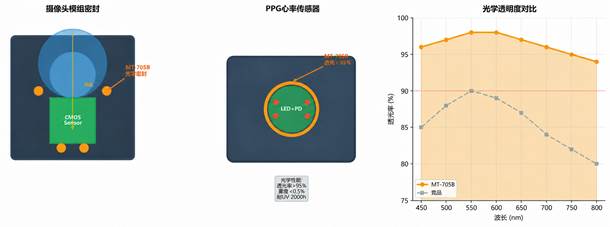

Figure 4-2 Optical Sealant Application Diagram: camera-module sealing, PPG heart-rate sensor, optical-transparency comparison

4.1 Smart Watch Cooling Solution

Application location: main chip (AP) and shield can. Recommended product: MT-3203 (3.0 W/m·K)

Wearable cooling characteristics: small size (watch interior <2 cm³), limited cooling; surface-touch comfort (skin contact <42℃); small heat capacity, peak temperature rises quickly; requires ultra-thin coating + high-efficiency thermal conduction

4.2 Sensor Optical Sealing

Application location: heart-rate, SpO2, and ambient-light sensors. Recommended product: MT-705B optical sealant

Sensor

Optical Sealing Requirement

MT-705B

PPG Heart Rate

Light transmittance >90%; isolates ambient light

Light transmittance >95%

SpO2 Blood Oxygen

Dual-wavelength transmission; no scattering

Low haze <0.5%

Ambient Light / Proximity

IR transmission; visible-light blocking

Customizable filtering

4.3 Watch Full-Device Waterproofing

Recommended product: MT-705A (medical grade). Waterproof rating: daily 5 ATM (50 m); swimming 10 ATM (100 m); diving 20 ATM (200 m). Key requirements: biocompatibility (skin contact, ISO 10993); resistant to sweat / sunscreen / hand soap; button/knob sealing tactile feel

5. TWS Earbuds and Audio Device Solutions

5.1 TWS Earbud Chip Cooling

Recommended product: MT-3202 (2.0 W/m·K). Applications: Bluetooth chip / ANC noise-cancellation chip and shield can; charging IC cooling; wireless-charging receiver heat conduction

5.2 Acoustic Sealing Solution

Location

Sealing Purpose

Speaker front-cavity sealing

Front/rear cavity isolation; optimize low frequency

Adjustable damping; low-frequency improved by 3 dB

Microphone sealing

Noise-cancellation microphone airtightness

Airtightness <0.1 sccm

Vent-hole tuning

Passive / active noise cancellation

Venting membrane assistance

5.3 Charging Case and Earbud-Body Waterproofing

Recommended product: MT-705A. Waterproof rating: earbud body: IPX4/IPX5 (sweat/rain proof); charging case: IPX4 (splash proof). Sealing solution: earbud housing mid-frame to front-shell dispensing seal; charging-case lid magnetic dispensing; charging-PIN metal insert sealing

6. AR/VR Device Application Solutions

6.1 AR/VR Main Chip Cooling

Application location: AR/VR main AP (XR2 / Snapdragon XR, etc.) + display-driver chip. Recommended product: MT-3207 (8.5 W/m·K)

AR/VR cooling challenges: power 5–15 W, compact size (VR all-in-one <500 g); close to face, surface temperature <45℃; limited active-cooling (fan) space; grease + VC + airflow coordinated cooling

6.2 Optical Module Sealing

Recommended product: MT-705B. Applications: Pancake lens-module sealing; optical-waveguide / optical-engine module protection; eye-tracking sensor sealing; silicon-based OLED/LCOS bonding

6.3 VR Headset / AR Glasses Waterproofing

Recommended product: MT-705A. Waterproof requirements: VR controller: IP54 sweat-proof; headset body: sweat- and moisture-proof; AR glasses: IP53 (daily splash-proof)

7. Drone Application Solutions

7.1 ESC / Motor Cooling Solution

Application location: brushless-motor ESC MOSFET cooling and motor-stator cooling. Recommended product: MT-3203 thermal grease (3.0 W/m·K)

Drone Type

ESC Power

Cooling Focus

Recommendation

Consumer Aerial Drone

20~60A x 4

Air cooling + airspeed cooling

MT-3203

FPV Racing Drone

40~80A x 4

Large temperature rise at full throttle

MT-3203

Industrial / Commercial Drone

60~120A

Motor stall / overload

MT-3203+MT-4203

7.2 Flight-Control Board Conformal Coating

7.3 Camera Gimbal and Airframe Sealing

Recommended product: MT-705A. Applications: gimbal camera-module sealing; airframe compartment waterproofing; GPS / video-transmission antenna sealing

8. Smart Speaker and Smart Home Terminal Solutions

8.1 Smart Speaker Cooling Solution

Application location: amplifier chip (Class-D) cooling, WiFi/BT chip cooling. Recommended product: MT-3202 (2.0 W/m·K)

Smart Speaker Type

Amplifier Power

Cooling Characteristic

Recommendation

Portable Bluetooth Speaker

5~20W

Passive radiator + natural cooling

MT-3202

Smart-Screen Speaker

20~50W

Screen backplate + heat pipe

MT-3203

Home-Theater Speaker

50~200W

Active air cooling + heat sink

MT-3203+MT-4203

8.2 Microphone-Array Acoustic Sealing

8.3 Smart Home Terminal Sealing

Recommended product: MT-705A. Target devices: smart lock (outdoor panel IP65); smart camera (outdoor IP67); smart panel (moisture- and condensation-proof); smart-curtain motor (dust-proof IP54)

9. IoT Module and Sensor Solutions

9.1 RF PA Cooling Solution

Recommended product: MT-3202 (2.0 W/m·K). Applications: WiFi/BT RF PA cooling; NB-IoT / LTE Cat.1 module cooling; LoRa RF power-amplifier cooling

9.2 IoT Module Conformal Coating Protection

9.3 IoT Sensor Sealing Solution

Recommended product: MT-705A. Applications: temperature/humidity sensor housing sealing; gas-sensor module sealing; vibration/acceleration sensor sealing; smart door/window magnetic sealing

10. Selection Guide and Technical Data Comparison

10.1 Quick Selection Matrix

Application Scenario

Primary Requirement

10.2 Smart Electronics Cooling Solution Tiers

Smart electronics cooling solution tiers: flagship phone AP/GPU (10–15 W) -> MT-3207 thermal grease (8.0 W/m·K) + VC vapor chamber; mid-range phone SoC (5–8 W) -> MT-3203 thermal grease (3.0 W/m·K) + copper foil; smart watch AP (1–3 W) -> MT-3202 thermal grease (2.0 W/m·K) + shield can; TWS earbud chip (<1 W) -> MT-3201B thermal grease (1.6 W/m·K) + copper foil; AR/VR AP (5–15 W) -> MT-3207 (8.5 W/m·K) + active fan; drone ESC (20–120 A) -> MT-3203 + heat-sink air cooling

11. Competitive Advantages

11.1 Technical Advantages

8.0 W/m·K ultra-high-conductivity grease: highest thermal grade in consumer electronics; 30 μm ultra-thin coating adapts to nano-scale tolerances

Optical sealant 95%+ light transmittance: low shrinkage <0.5%; validated for 1,000,000 OIS cycles

FPC reinforcement 200,000 bends: validated on foldable phones; withstands bend radius <1 mm

Acoustic sealant with adjustable damping: matches different cavity designs; low-frequency improved by 3 dB

Low-VOC full series: compliant with RoHS/REACH/halogen/HF; meets environmental requirements of major brands

11.2 Quality Advantages

Quality Dimension

Industry Standard

Our Level

Batch Cpk

>=1.33

>=1.67

Thermal Conductivity Tolerance

+/-0.2 W/m*K

+/-0.15

Viscosity Tolerance

+/-20%

+/-10%

VOC Content

No mandatory limit

<0.1%（150C/30min）

Dispensing Accuracy

+/-10%

+/-5%

11.3 Service Advantages

Thermal simulation service: chip-level / full-system thermal simulation and optimization; dispensing process package: provide precision dispensing parameter package (speed / pressure / temperature); samples in 24 h: trial samples matched to the brand; on-site support: engineers on-site during production ramp-up; custom R&D: co-develop dedicated formulations for specific chips/housings

12. Representative Case Studies

Case 1: Flagship Phone AP Cooling Solution

Customer background:

Top domestic phone brand; flagship SoC power consumption 15 W+

Requirement:

AP full-load temperature rise <35℃; surface temperature <45℃; no throttling

Solution:

VC vapor chamber + MT-3207 (8.0 W/m·K) ultra-thin coating

Result:

AP temperature rise reduced by 18℃; full-frame operation without throttling; surface temperature <43℃, comfortable to touch; full-device cooling capability improved by 25%

Case 2: Smart Watch Single-Chip Cooling

Customer background:

Wearable brand; flagship watch size limits cooling

Requirement:

Chip temperature rise <15℃; surface <42℃; battery area <40℃

Solution:

MT-3203 + thermal copper foil + shield can

Result:

Chip temperature drop 12℃; surface temperature 39℃; 10 min GPS + heart-rate full-on without frame drops; passes 5 ATM waterproofing + comfortable skin contact

Case 3: TWS Earbud ANC Optimization

Customer background:

Leading audio brand; flagship TWS noise-cancelling earbuds

Requirement:

Front/rear cavity isolation + noise-reduction depth -45 dB

Solution:

MT-705B optical sealant

Result:

Low-frequency noise reduction improved by 3 dB, reaching -48 dB; wind-noise cancellation improved by 40%; IPX5 passed; production first-pass yield 99.5%

Case 4: Foldable-Screen FPC Reinforcement Solution

Customer background:

Foldable-phone manufacturer; hinge FPC bend life

Requirement:

FPC bends >200,000 times; no fracture / fatigue

Solution:

Result:

Passed 200,000-bend test (R=2 mm); impedance change in bend zone <5%; mass-production stability Cpk 1.72

13. Technical Service System

13.1 Pre-Sales Service

Service Item

Content

Response Time

Technical Consultation

Selection + thermal simulation + solution design

Within 2 hours

Free Samples

Trial samples matched to device components

Within 24 hours

Application Testing

Dispensing process test + reliability

3 business days

Process Solution

Precision dispensing SOP + parameter package

5 business days

On-Site Visit

Technical exchange + production-line review

Within 1 week

13.2 In-Sales Service

First-lot on-site support: engineers guide precision dispensing processes on the line; operation training: SOP preparation + on-site training; equipment integration: provide precision dispensing/printing equipment parameters; environmental documents: full set of RoHS/REACH/HF/halogen

13.3 After-Sales Service

Quarterly follow-up: quality review + joint assessment; batch traceability: 3-year retained samples + full-process records; failure analysis: 24 h response + 8D report; technology upgrade: pre-research on next-gen cooling/waterproofing solutions We are committed to providing professional, integrated thermal-conductivity, sealing, protection, and reinforcement solutions for the smart electronics industry.

Smart Consumer Electronics – Electronic Silicone Application Solutions

Table of Contents

1. Smart Electronics Industry Overview

1.1 Smart Electronics Industry Development Trends

1.2 Core Value of Electronic Silicone in Smart Electronics

1.3 Smart Electronics Classification and Silicone Requirement Mapping

2. Product Portfolio Overview

2.1 Core Product Series

2.2 Product Technical Advantages

3. Smartphone Application Solutions

3.1 Chip Cooling Solution

8.5 W/m*K

3.0 W/m*K

3.2 Camera Module Sealing Solution

3.3 Full-Device IP68 Waterproofing Solution

3.4 FPC and Connector Reinforcement

4. Wearable Device Application Solutions

4.1 Smart Watch Cooling Solution

4.2 Sensor Optical Sealing

4.3 Watch Full-Device Waterproofing

5. TWS Earbuds and Audio Device Solutions

5.1 TWS Earbud Chip Cooling

5.2 Acoustic Sealing Solution

5.3 Charging Case and Earbud-Body Waterproofing

6. AR/VR Device Application Solutions

6.1 AR/VR Main Chip Cooling

6.2 Optical Module Sealing

6.3 VR Headset / AR Glasses Waterproofing

7. Drone Application Solutions

7.1 ESC / Motor Cooling Solution

7.2 Flight-Control Board Conformal Coating

7.3 Camera Gimbal and Airframe Sealing

8. Smart Speaker and Smart Home Terminal Solutions

8.1 Smart Speaker Cooling Solution

8.2 Microphone-Array Acoustic Sealing

8.3 Smart Home Terminal Sealing

9. IoT Module and Sensor Solutions

9.1 RF PA Cooling Solution

9.2 IoT Module Conformal Coating Protection

9.3 IoT Sensor Sealing Solution

10. Selection Guide and Technical Data Comparison

10.1 Quick Selection Matrix

10.2 Smart Electronics Cooling Solution Tiers

11. Competitive Advantages

11.1 Technical Advantages

11.2 Quality Advantages

11.3 Service Advantages

12. Representative Case Studies

13. Technical Service System

13.1 Pre-Sales Service

13.2 In-Sales Service

13.3 After-Sales Service
